Requirements:

• Integrated Floppy Disk Drive (i.e. a USB Floppy will not work)
• FD raw driver installed (Download: http://www.mazview.com/download/FdInstall.exe)

• Start MazView
• Click on the Mazak Disk tab

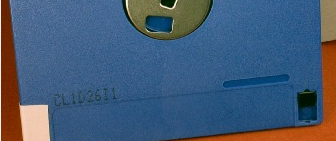

• If the disk that has been used has two square holes on it, you might need to tape the one that is on the right

• Insert the disk in the floppy. Ignore any possible error message from Windows about the floppy disk.
• Click Import Mazak Disk

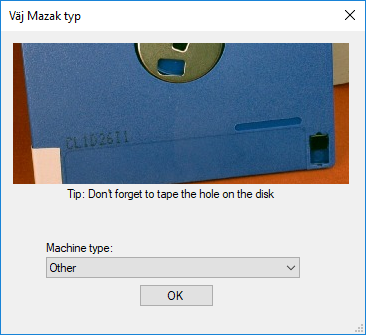

• Select the type of machine (T1 & T4 are a little different so usually it's “Övriga”) and Click OK

• Wait until the Disk has been read successfully and press OK

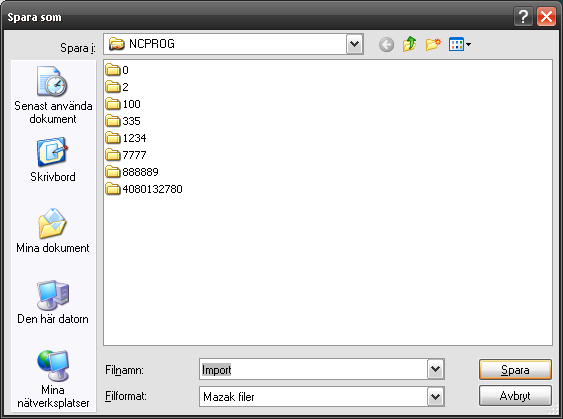

• Select where you want the read files to be located. The files will be numbered and the number will be added ti the filename you specify.

The files will show up in MazView as .MAZ files

* Done!
